MX23C3210 is a high performance 4Mbit serial electrically erasable and programmable read only memory (EEPROM) with a 100ns access time. It is suitable for various applications such as code storage, data storage, configuration storage and security storage.

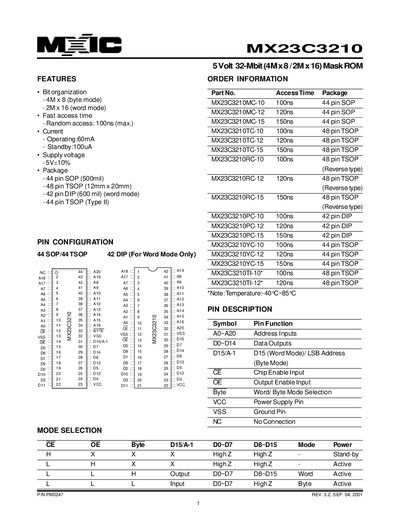

The MX23C3210 is a 32‑Mbit mask ROM offered by Macronix. The document provides detailed electrical characteristics, timing parameters, and package dimensions for various 44‑pin SOP, TSOP and 42‑pin DIP versions.
Key sections include features, absolute maximum ratings, DC and AC characteristics, pin description, package outlines, revision history and contact information for Macronix worldwide offices.
| Memory organization | 4M x 8 (byte mode) 32‑Mbit mask ROM |
|---|---|
| Access time (tRC) | 100 ns (typical) |
| Supply voltage (VCC) | 5 V (+10 % tolerance) |
| Output high voltage (VOH) | 2.4 V |
| Input high voltage (VIH) | 2.2 V |
| Operating current (ICC1) | 60 mA |
| Standby current (TTL) (ISTB1) | 1 mA |
| Package type (DIP) | 42‑pin plastic DIP (600 mil) |
| Package type (SOP) | 44‑pin plastic SOP |
The typical read cycle time (tRC) is 100 ns.
It requires a 5 V supply with a ±10 % tolerance.
