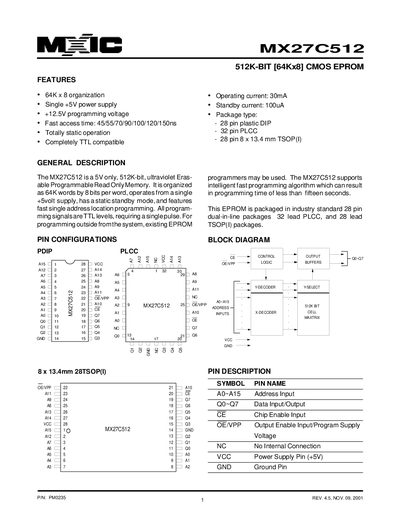

The MX27C512 is a 5V only, 512K-bit, ultraviolet Eras- able Programmable Read Only Memory. It is organized as 64K words by 8 bits per word, operates from a single +5volt supply, has a static standby mode, and features fast single address location programming.
The MXIC MX27C512 is a 512K-bit CMOS EPROM organized as 64K words by 8 bits per word. It operates from a single +5V power supply and features fast access times ranging from 45ns to 150ns depending on the specific grade. The device supports totally static operation, TTL compatibility, and includes an intelligent fast programming algorithm that can program the chip in less than fifteen seconds.
| Organization | 64K x 8 |
|---|---|
| Power Supply | +5V only |
| Programming Voltage | +12.5V |
| Operating Current (Active) | 30mA |
| Standby Current | 100uA |
| Access Time (Min) | 45ns |
The device is organized as 64K words by 8 bits per word.
Programming requires a +12.5V supply on the VPP pin.
The intelligent fast programming algorithm results in a time of less than fifteen seconds.
