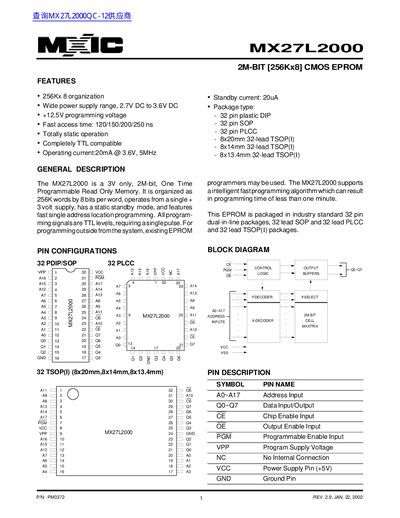

The MX27L2000 is a 3V only, 2M-bit, One Time Programmable Read Only Memory. Its features are 256K words by 8 bits per word, 2.7V DC to 3.6V DC, +12.5V, 120/150/200/250 ns, static standby mode, completely TTL compatible, 20mA @ 3.6V, 5MHz.
The MXIC MX27L2000 is a 2M-bit (1Mbit) One Time Programmable (OTP) ROM organized as 256K words by 8 bits. It operates from a single +3 volt supply with a wide range of 2.7V to 3.6V DC and features fast access times ranging from 120ns to 250ns depending on the speed grade.
The device supports various industry-standard packages including 32-pin plastic DIP, SOP, PLCC, and TSOP(I). It includes a static standby mode for low power consumption and is fully TTL compatible. Programming requires a single +12.5V pulse and can be performed using existing EPROM programmers.
| Organization | 256K x 8 bits |
|---|---|
| Capacity | 2M-bit (1Mbit) |
| Operating Voltage Range | 2.7V DC to 3.6V DC |
| Programming Voltage | +12.5V |
| Access Time (Fastest) | 120 ns |
| Operating Current | 20mA @ 3.6V, 5MHz |
| Standby Current (CMOS) | 20 uA |
| Operating Temperature Range | -40°C to +85°C |
The device is organized as 256K words by 8 bits per word.
It operates from a single +3 volt supply with a wide range of 2.7V DC to 3.6V DC.
The device requires a +12.5V programming voltage.
