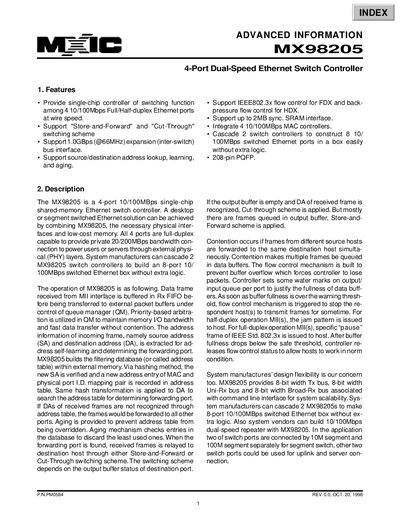

MX98205 is a 4-port 10/100MBps single-chip shared-memory Ethernet switch controller.
The MX98205 is a single‑chip Ethernet switch controller that provides four 10/100 Mbps full/half‑duplex ports. It supports both Store‑and‑Forward and Cut‑Through switching schemes, IEEE802.3x flow control, and an expansion bus up to 1.0 Gbps at 66 MHz.
Designed for easy system integration, the controller offers 8‑bit Tx, Uni‑Rx and Broad‑Rx buses, a 2 MB SRAM interface, and can be cascaded with another MX98205 to create an 8‑port switch without additional logic. It is supplied in a 208‑pin POFP package.
| Number of ports | 4 |
|---|---|
| Supported speeds | 10/100 Mbps |
| Duplex capability | Full‑duplex and half‑duplex |
| Switching schemes | Store‑and‑Forward, Cut‑Through |
| Inter‑switch bus speed | 1.0 Gbps @66 MHz |
| Package type | 208‑pin POFP |
| SRAM interface | up to 2 MB |
| Integrated MAC controllers | 4 |
| Flow control | IEEE802.3x |
| Bus widths | 8‑bit Tx, 8‑bit Uni‑Rx, 8‑bit Broad‑Rx |
It provides four 10/100 Mbps Ethernet ports.
Yes, two MX98205 controllers can be cascaded to form an eight‑port switch without extra logic.
The device supports both Store‑and‑Forward and Cut‑Through switching schemes.
Yes, it supports IEEE802.3x flow control for full‑duplex and back‑pressure flow control for half‑duplex operation.
