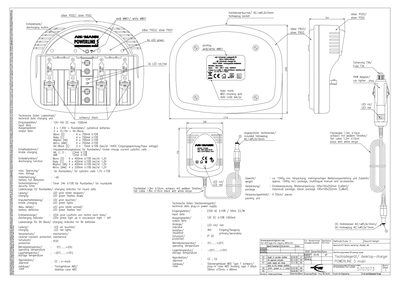

This document describes the POWERLINE 5 charging unit, including its input and output specifications, supported battery types, and operation modes such as trickle charging and discharging. It also details the LED status indicators and safety features like the security timer and reverse‑polarity protection.
Technical data for the plug‑in power supply, packaging dimensions, and weight are listed, along with wiring details for the flat cable and hollow‑plug socket. The manual includes instructions for interpreting LED signals and troubleshooting battery defects. This manual is written in German.
| Input voltage | 12 V‑16 V DC max 1000 mA |
|---|---|
| Supported battery – Mono (AA) | 4 × 700 mA |
| Supported battery – Baby (C) | 4 × 700 mA |
| Supported battery – Mignon (AAA) | 4 × 700 mA |
| Supported battery – Micro (AAA) | 4 × 360 mA |
The charger accepts an input of 12 V to 16 V DC with a maximum current of 1000 mA.
Yes, the charger includes a 24‑hour security timer for round cells.
