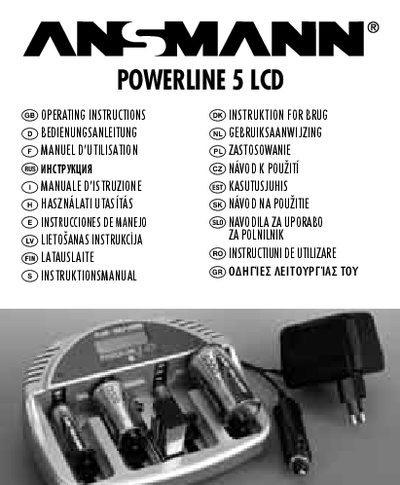

ANSMANN POWERLINE 5 LCD User Manual
The POWERLINE 5 LCD is a charger with an LCD display and optional discharge function for 1‑4 NiCd/NiMH cylindrical cells (AAA, AA, C, D) and up to two 9 V blocks. It automatically starts charging when cells are inserted, provides individual charging for each compartment, and switches to trickle‑charge mode when charging is complete.
The manual covers safety precautions, connection methods for mains and vehicle use, charging and discharging procedures, LED indicator meanings, maintenance, environmental disposal, and technical specifications such as charging currents, input voltage and dimensions.
ANSMANN POWERLINE 5 specifications
| Input voltage | 12 V‑16 V DC max 1000 mA |
|---|---|
| Supported battery – Mono (AA) | 4 × 700 mA |
| Supported battery – Baby (C) | 4 × 700 mA |
| Supported battery – Mignon (AAA) | 4 × 700 mA |
| Supported battery – Micro (AAA) | 4 × 360 mA |
Source: POWERLINE 5 User Manual
All ANSMANN POWERLINE 5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input voltage range of the POWERLINE 5 charger?
The charger accepts an input of 12 V to 16 V DC with a maximum current of 1000 mA.
From: POWERLINE 5 User Manual
Is there a security timer on the device?
Yes, the charger includes a 24‑hour security timer for round cells.
From: POWERLINE 5 User Manual
Can the charger discharge 9 V batteries?
No, the discharge button does not work for the 9 V block.
What do the LED indicators mean during charging?
Red flashing indicates charging, fast‑blinking red indicates a faulty cell, yellow flashing indicates discharging, and green flashing indicates the charger is ready or in trickle‑charge mode.
