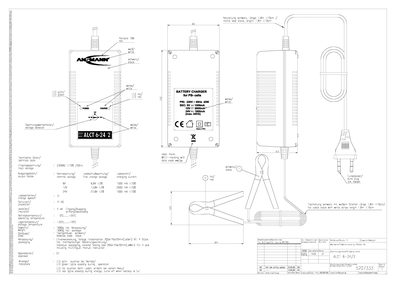

This manual presents the technical data for the ANSMANN ALCT 6-24/2 battery charger, including input voltage, output voltage, charging currents, protection class, and operating temperature. It also describes the LED indicators, packaging dimensions, and approval markings.
The document includes bilingual headings (German/English) and details such as the voltage selector, insulation rating, and wiring information for the charger, helping users install and operate the device safely. This manual is written in German.
| Input voltage | 230 VAC, 50 Hz (E10%) |
|---|---|
| Output voltage (13.8 V model) | 13.8 V |
| Charging current (13.8 V model) | 2000 mA |
| Charging current (6 V model) | 1500 mA |
| Insulation rating | 4 kV primary/secondary |
| Packaging dimensions | 205 × 145 × 70 mm (L × W × H) |
The green LED lights steadily during operation.
The red LED lights steadily during charge and turns off when the battery is full.
The charger requires 230 VAC at 50 Hz (E10%).
