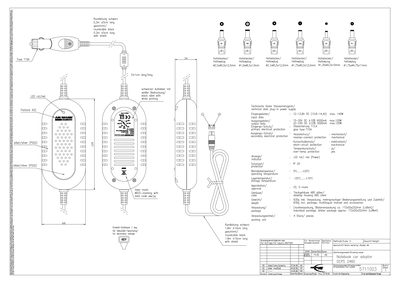

This manual describes the Ansmann DCPS 2460 DC power supply, its features, and how to install and operate it safely. It includes technical data, input and output specifications, protection functions, and physical characteristics.
Key sections cover input voltage range, output voltage and current limits, protection mechanisms such as reverse polarity and short‑circuit protection, IP20 protection class, operating temperature, weight, packaging dimensions, and CE/E‑mark approval. This manual is written in German.
| Input voltage | 12‑13.8 V DC (10.8‑14.4 V) max 140 W |
|---|---|
| Output voltage | 15‑20 V DC +10 % 6000 mA max 120 W |
| Secondary output voltage | 22‑24 V DC +10 % 5000 mA max 120 W |
| Fuse type | T15A (glass fuse TISA) |
| Reverse polarity protection | Yes |
| Short‑circuit protection | Electronic |
| Over‑temperature protection | Yes |
| Protection class (IP rating) | IP20 |
| Operating temperature | up to 25 °C |
| Weight (incl. packaging) | 630 g |
| Package dimensions (L×W×H) | 172 × 55 × 252 mm |
| Approval | CE; E‑mark |
The input voltage range is 12‑13.8 V DC (10.8‑14.4 V) with a maximum power of 140 W.
Yes, it includes electronic short‑circuit protection.
The device is rated IP20.
It weighs 630 g including packaging.
