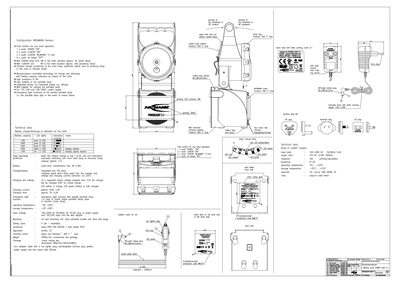

This manual describes the configuration and operation of the ANSMANN POWERLIGHT 5.1 portable lamp. It explains the push‑button functions for the XENON and LUXEON lamps, battery‑capacity indication via five LEDs, and the emergency lighting mode when mains power fails.
Technical data such as battery type, charging voltage, input voltage range, IP protection ratings, temperature limits, mounting options and accessory details are listed. Safety approvals (CE, cULus, SAA, BEAB, GS) and packaging dimensions are also included.
| Battery type | Lead‑acid, maintenance free, 6V 4.5Ah |
|---|---|
| Input voltage range | 100‑240 V AC 50/60 Hz |
| IP protection (lamp) | IP65 |
| IP protection (wall holder) | IP20 |
| Operating temperature | 20 °C to +50 °C |
| Storage temperature | 20 °C to +500 °C |
| Lamp head pivot forward | 25° |
| Lamp head pivot backward | 90° |
One push turns the XENON lamp on.
The lamp has an IP65 protection rating.
The lamp accepts 100‑240 V AC at 50/60 Hz.
