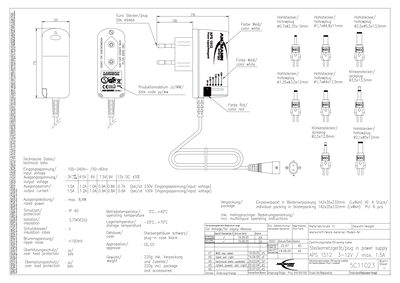

The ANSMANN APS 1512 is a plug‑in power supply presented with technical data, safety information, and packaging details. The document lists the product’s approvals (CE, GS) and environmental markings such as WEEE.
Key electrical characteristics include a wide input voltage range, selectable output voltage, and protected output current. Mechanical dimensions, weight, and environmental limits are also provided. This manual is written in German.
| Input voltage | 100‑240 V ~ 50‑60 Hz |
|---|---|
| Output voltage | 3‑12 V |
| Output current | up to 1.5 A |
| Maximum power | 8.4 W |
| Protection class | IP 40 |
| Operating temperature | up to +40 °C |
| Isolation | 5.75 kV (2 s) |
| Weight (incl. packaging) | 220 g |
The APS 1512 accepts an input voltage of 100‑240 V ~ at 50‑60 Hz.
The device can deliver an output voltage between 3 V and 12 V.
The maximum output current is 1.5 A (up to 1.2 A at lower voltages).
It is rated IP 40.
