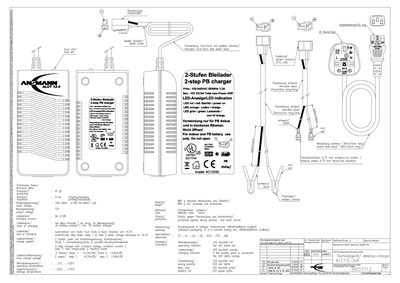

This manual describes the ANSMANN ALCT 12-3 charger, a two‑step battery charger intended for indoor use with PB batteries. It includes safety warnings such as "For Indoor and PB battery use only. Do not open" and details on the connector types and cable lengths.
The document lists technical data, including input voltage range, charging currents, power rating, IP protection class, and LED status indicators that show power on, charging, and charge completion. This manual is written in German.
| Input voltage | 100‑240 V AC, 50‑60 Hz |
|---|---|
| Charging voltage step 1 | 14.7 V |
| Charging voltage step 2 | 13.8 V |
| Charging current | 2‑3 A |
| Maximum power | 42 W |
| IP protection rating | IP20 |
| Weight | 980 g (incl. package) |
| Cable length (black flat cable) | 30 cm |
The charger accepts an input voltage of 100‑240 V AC at 50‑60 Hz.
LED red shows power on, LED orange indicates charging, and LED green signals that the battery is fully charged.
Yes, it is for indoor use with PB batteries only and must not be opened.
