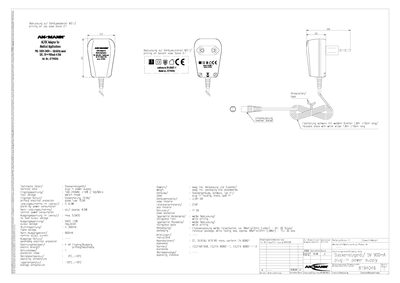

The ANSMANN 8194046 is a plug‑in AC/DC power supply designed for medical applications. It accepts a universal input voltage and provides a regulated 5 V DC output.
The device includes primary and secondary electrical protection, complies with IEC medical standards, and operates within defined temperature and storage ranges. This manual is written in German.
| Input voltage | 100‑240 V AC, 50/60 Hz |
|---|---|
| Power consumption (idle) | < 0.3 W |
| Nominal power consumption | ≈ 6.5 W |
| Output voltage | 5 V DC (max) |
| Output current | 900 mA |
| Ripple voltage | < 300 mV |
| Primary protection | 5 A fuse |
| Operating temperature | -40 °C … 40 °C |
| Storage temperature | -25 °C … 70 °C |
| Certifications | CE, Bureau Veritas, EN 60601 |
| Applicable standards | IEC/EN 61558, IEC/EN 60601‑1, IEC/EN 60601‑1‑2 |
It accepts 100 V to 240 V AC at 50 Hz or 60 Hz.
The output voltage is a regulated 5 V DC (maximum).
It can supply up to 900 mA of output current.
