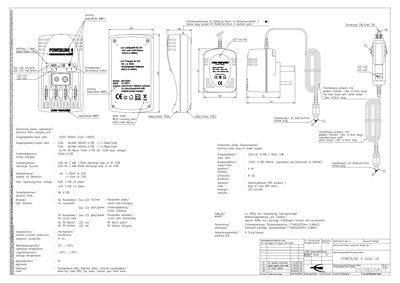

This manual describes the ANSMANN AN14304 battery charger, including its technical data, input and output specifications, and safety mechanisms. It details how to connect the charger, the supported battery types (AA/AAA NiCd or NiMH), and the LED indicators for charging, trickle charging, and discharging.
Additional sections cover protection features such as reverse‑connect protection, the IP20 rating, weight and packaging information, and regulatory approvals. The document also includes operating temperature ranges and storage conditions for reliable use. This manual is written in German.
| Input voltage | 12 V DC (10.8 V‑16 V range) |
|---|---|
| Input current | 450 mA |
| Output voltage (AA/AAA) | 2.8 V |
| Output current (AA/AAA) | 500 mA |
| Maximum voltage | 6.8 V +15 % |
| Weight (incl. packaging) | ≈ 600 g |
| Reverse‑connect protection | Mechanical |
The charger accepts 12 V DC at 450 mA, with an input range of approximately 10.8 V to 16 V DC.
The charger includes an 8‑hour safety timer.
