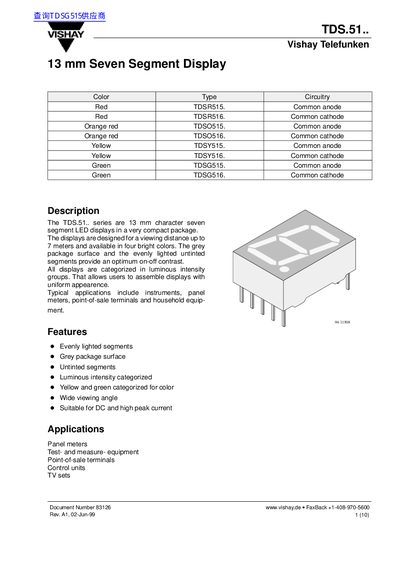

The TDS.51.. series are 13 mm character seven segment LED displays in a very compact package.
The TDS.51.. series are 13 mm character seven‑segment LED displays offered in red, orange‑red, yellow and green colors. They are designed for viewing distances up to 7 m and are suitable for instruments, panel meters, point‑of‑sale terminals and household equipment.
The document provides absolute maximum ratings, optical and electrical characteristics, typical performance curves, mechanical dimensions and pin connections, as well as compliance information such as the Ozone Depleting Substances policy.
| Mechanical dimensions | Dimensions given in mm |
|---|
The datasheet provides the dimensions in millimetres.
