Vishay Sprague 592D Solid Tantalum Chip Capacitors are low profile and feature Maximum CV Performance. They are available in a temperature range of -55°C to +85°C, with a maximum rated voltage of 35 WVDC.
The 592D series from Vishay Sprague provides low‑profile, conformal‑coated solid tantalum chip capacitors ranging from 1 µF to 3300 µF. They are offered with lead‑free terminations and are available in standard and extended voltage ratings from 4 WVDC up to 35 WVDC.

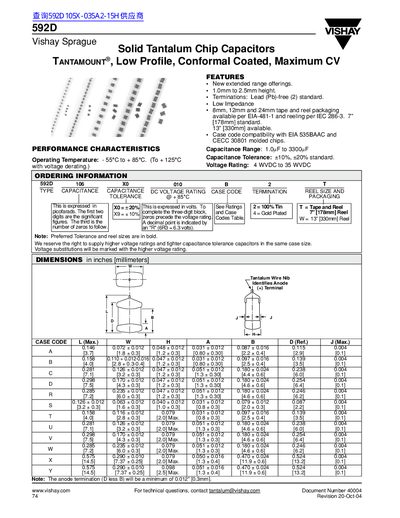

The document lists detailed electrical characteristics such as ESR, dissipation factor, and surge voltage, as well as mechanical data like dimensions and tape‑and‑reel packaging options (7" and 13" reels). Application guidelines and test procedures are also included to aid designers in selecting the appropriate part.
| Capacitance range | 1.0 µF to 3300 µF |
|---|---|
| Voltage rating | 4 WVDC to 35 WVDC |
| Operating temperature | -55 °C to +85 °C |
| Tape and reel reel sizes | 7" (178 mm) and 13" (330 mm) reels |
| Maximum surge voltage (4 WVDC rating) | 5.2 V at +85 °C |
They are rated for –55 °C to +85 °C (and can operate up to +125 °C with voltage derating).
The series is offered with voltage ratings from 4 WVDC up to 35 WVDC.
They are supplied on standard 7" (178 mm) and 13" (330 mm) reels with case‑specific dimensions.
The 4 WVDC part can withstand a surge of 5.2 V at +85 °C.
