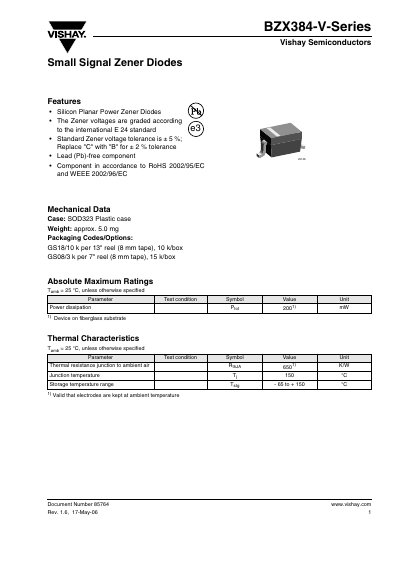

This document introduces the features and characteristics of the BZX384-V series small signal Zener diodes, including mechanical data, absolute maximum ratings, thermal characteristics, and electrical characteristics.
The BZX384-V Series from Vishay consists of small‑signal Zener diodes offered in an SOD323 surface‑mount package. The series covers a wide range of Zener voltages and is designed for lead‑free, RoHS‑compliant applications.
Key specifications include Zener voltage ranges from 2.2 V to 50 V, a maximum power dissipation of 200 mW, thermal resistance of 650 K/W, and a storage temperature range of –65 °C to +150 °C. Mechanical data list the SOD323 case dimensions and a weight of approximately 5 mg per device.
| Package type | SOD323 |
|---|---|
| Weight | ≈5.0 mg |
| Zener voltage range (example) | 2.2 V – 2.6 V |
| RoHS compliance | Lead‑free, RoHS 2002/95/EC |
| Storage temperature range | -65 °C to +150 °C |
The BZX384-V series uses an SOD323 plastic case.
Yes, they are lead‑free and meet RoHS 2002/95/EC requirements.
They can be stored from –65 °C to +150 °C.
