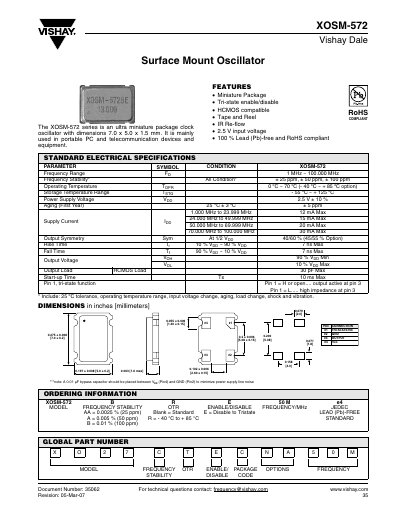

XOSM-572 is an ultra miniature surface mount oscillator mainly used in portable PC and telecommunication devices. It features miniature package, tri-state enable/disable, HCMOS compatible, tape and reel, IR re-flow, 2.5V input voltage, and is 100% lead-free and RoHS compliant.
The XOSM-572 series is a compact surface‑mount oscillator (7.0 mm × 5.0 mm × 1.5 mm) designed for portable PCs and telecommunications equipment. It features a tri‑state enable/disable pin, HCMOS compatibility, and RoHS‑compliant, lead‑free construction.
Electrical specifications include a 2.5 V supply, low supply current, fast rise/fall times, and selectable frequency stability of ±25 ppm, ±50 ppm, or ±100 ppm. Various package options and ordering codes are provided for different frequency and stability requirements.
| Frequency Range | 1 MHz – 100 MHz |
|---|---|
| Frequency Stability | ±25 ppm, ±50 ppm, ±100 ppm |
| Operating Temperature | 0 °C – 70 °C (option –40 °C – +85 °C) |
| Supply Voltage (VDD) | 2.5 V ±10 % |
| Supply Current (1‑MHz‑23.999 MHz) | 12 mA max |
| Output Symmetry | 40/60 % (45/55 % option) |
| Rise Time | 7 ns max |
| Fall Time | 7 ns max |
| Output Load | 30 pF max (HCMOS) |
| Start‑up Time | 10 ms max |
| Package Dimensions | 7.0 mm × 5.0 mm × 1.5 mm |
It operates from 1 MHz up to 100 MHz.
The device requires a 2.5 V supply with a ±10 % tolerance.
Stability can be selected as ±25 ppm, ±50 ppm, or ±100 ppm.
Pin 1 provides a tri‑state function: high or open enables the output at pin 3, low disables it (high‑impedance).
