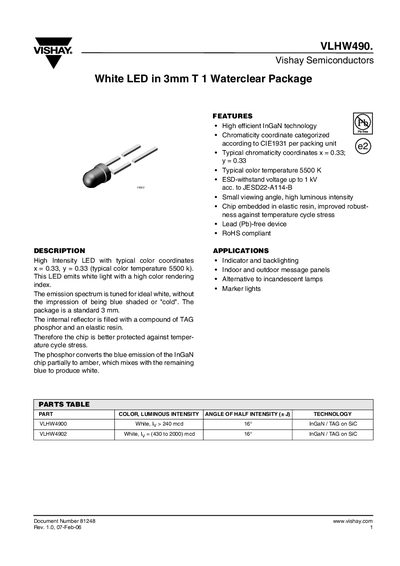

Vishay Semiconductors VLHW490 is a high-intensity white LED from Vishay that emits light with a high color rendering index. The typical color temperature is 5500 K and the emission range is 3 mm. Applications include indicators, backlights, indoor and outdoor signboards, incandescent lamp replacements, and marker lights.
The VLHW490 is a 3 mm T1 water‑clear package white LED using InGaN technology. It delivers high luminous intensity with typical chromaticity coordinates x = 0.33, y = 0.33 and a color temperature of 5500 K. The chip is embedded in an elastic resin for improved robustness against temperature cycling.
Typical applications include indicator and backlighting, indoor/outdoor message panels, marker lights and as an alternative to incandescent lamps. The device is RoHS compliant, lead‑free and features an ESD‑withstand voltage up to 1 kV.
| Chromaticity coordinates (typical) | x = 0.33, y = 0.33 |
|---|---|
| Color temperature (typical) | 5500 K |
| Power dissipation (max) | 126 mW |
| Junction temperature (max) | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| ESD‑withstand voltage | 1 kV |
| RoHS compliance | Yes |
Yes, the LED is lead‑free and RoHS compliant.
