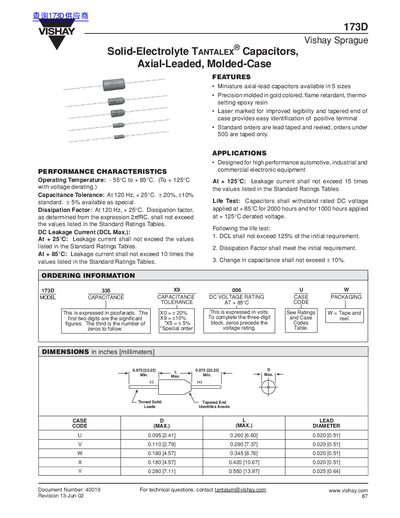

Vishay Sprague Solid Electrolyte Capacitor datasheet, providing product features and characteristics such as rated voltage, rated capacitance, operating temperature, etc.
The Vishay 173D series are solid‑electrolyte TANTALEX® capacitors with axial‑lead, molded‑case construction. They are offered in a wide range of capacitance values, voltage ratings and tolerances for automotive, industrial and commercial electronic applications.
The document provides performance characteristics, ordering information, dimensions, standard ratings and tape‑and‑reel packaging details, along with contact information for technical support.
| Operating Temperature | -55 °C to +85 °C (up to +125 °C with derating) |
|---|---|
| DC Leakage Current (DCL Max) at +25 °C | Must not exceed values listed in the Standard Ratings Tables |
| Maximum Voltage Rating | 2 WVDC @ +85 °C, surge 2.5 V (example entry) |
| Package Type | Axial‑lead, molded‑case |
| Packaging Format | Tape and reel |
The capacitors operate from –55 °C to +85 °C, and can be used up to +125 °C with voltage derating.
The DC leakage current must not exceed the values listed in the Standard Ratings Tables for the given voltage rating.
