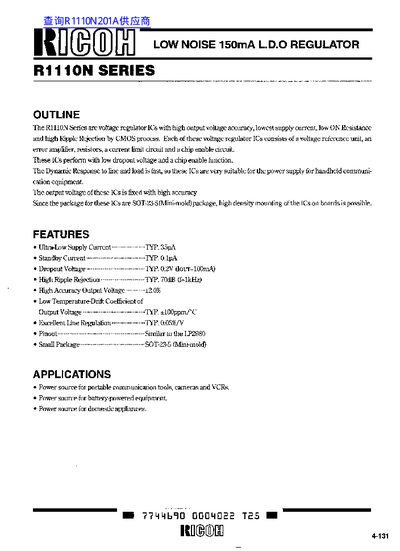

The R1110N series are low‑noise LDO voltage regulator ICs with ultra‑low supply current, high accuracy output voltage, and fast dynamic response, suitable for handheld communication equipment and battery‑powered devices. The device is offered in a compact SOT‑23‑5 (Mini‑mold) package for high‑density board mounting.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, pin descriptions, test circuits, and application hints, including recommended external components and layout guidelines for stable operation.
| Supply Current (typical) | 35 pA |
|---|---|
| Ripple Rejection (typical, 1 kHz) | 70 dB |
| Input Voltage Range | 2.7 V – 8 V |
| Maximum Output Current | 200 mA |
| Operating Temperature Range | -40 °C to 85 °C |
The typical supply current is 35 pA.
It is supplied in a SOT‑23‑5 (Mini‑mold) package.
The device can deliver up to 200 mA output current.
