Ricoh R5312L Series Application Manual

This document introduces the features of the 58645 series low voltage precision regulators, including low noise, high dynamic range, and multiple output voltages.

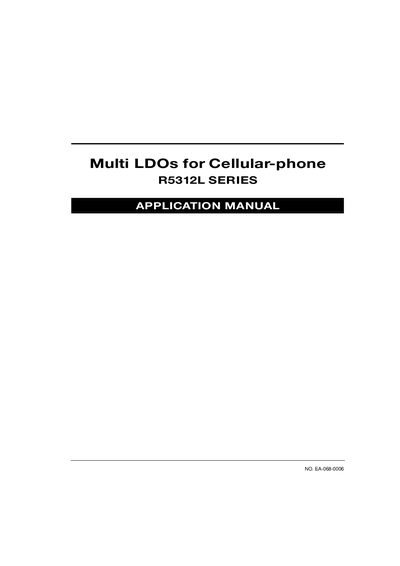

Ricoh R5312L Series Application Manual - cover page
Brand
Ricoh
Category
Other Electronics
Document type
Application Note
Language
English
Pages
33
File format
PDF
File size
336 KB
Published
01 June, 2012
Updated
30 September, 2023
MD5 checksum
332423F179832ED5D563BE798D83164B

About this manual

The R5312L series are multi‑LDO regulators designed for power management in cellular phones. Each IC integrates eight low‑noise LDOs, voltage detectors, and two LED drivers that can be controlled via a 3‑wire serial interface.

The manual includes an outline of features, a block diagram, a selection guide, detailed pin descriptions, absolute maximum ratings, overall and electrical characteristics, and noise performance graphs. It is intended for designers who need to configure voltage settings, understand pin functions, and evaluate electrical limits.

What's inside

  • Outline
  • Features
  • Applications
  • Block Diagram
  • Selection Guide
  • Pin Description
  • Absolute Maximum Ratings
  • Overall Characteristics
  • Electrical Characteristics

Specifications

Standby Current (typical)10 µA
Output Voltage Setting Range (VR1‑VR8)2.5 V – 3.3 V
Operating Temperature Range-40 °C to +85 °C
Supply Voltage (Vop)6.5 V
Package32‑pin QFP, 0.5 mm lead pitch

Frequently asked questions

What is the standby current of the R5312L regulators?

The standby current is typically 10 µA when only VR4 is enabled at no load.

What is the dropout voltage of VR1 at 120 mA?

VR1 has a dropout voltage of 150 mV at a load of 120 mA.

How many LDO regulators are integrated in each R5312L IC?

Each R5312L IC contains eight LDO regulators.

What package type does the R5312L use?

The device is offered in a 32‑pin QFP package with a 0.5 mm lead pitch.
