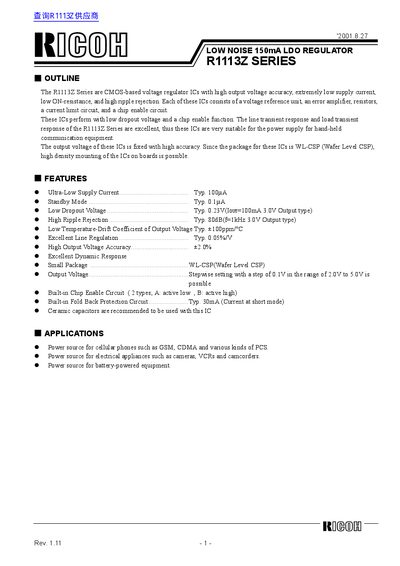

The R1113Z Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection.
The R1113Z series are CMOS‑based low‑noise LDO regulators offering ultra‑low supply current, standby current as low as 0.1 pA, and high output‑voltage accuracy. They feature a chip‑enable function, fold‑back protection, and are supplied in a wafer‑level CSP package for high‑density mounting.
The document provides block diagrams, pin configurations, absolute maximum ratings, electrical characteristics, and test circuit examples, along with application notes for handheld communication equipment, cameras, VCRs, camcorders, and other battery‑powered devices.
