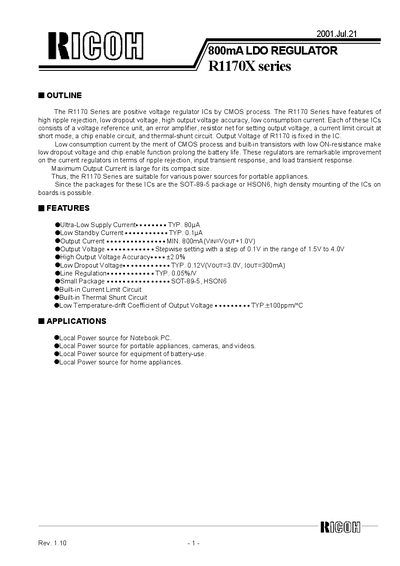

This document is the datasheet of R1170 series LDO, which mainly introduces the features and characteristics of R1170 series, including low power consumption, low dropout voltage, high accuracy, etc.
The R1170X series are positive‑voltage regulator ICs built with a CMOS process, offering high ripple rejection, low dropout voltage, and low consumption current. They are supplied in compact SOT‑89‑5 or HSON‑6 packages, making them suitable for portable appliances and battery‑powered equipment.
The document includes an outline of features, selection guide, pin descriptions, absolute maximum ratings, electrical characteristics, test circuits, and typical application notes, helping designers integrate the regulator into their designs.
| Operating Temperature Range | -40 °C to 85 °C |
|---|---|
| Input Voltage Rating | 6.0 V |
