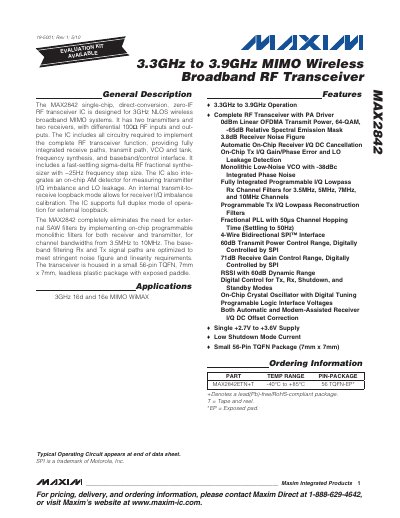

The MAX2842 is a single‑chip, direct‑conversion, zero‑IF RF transceiver IC designed for 3 GHz non‑line‑of‑sight MIMO systems. It integrates two transmitters and two receivers, on‑chip VCO, programmable filters, and a 4‑wire SPI interface in a compact 56‑pin TQFN package.
Key specifications include a 3.3‑3.9 GHz RF range, 60 dB gain control, 0 dBm maximum output power, 3.8 dB noise figure, and programmable channel bandwidths from 3.5 MHz to 10 MHz. The device operates from 2.7 V to 3.6 V and supports full‑duplex operation with digital control of gain, shutdown, and standby modes.
| RF Frequency Range | 3.3 GHz – 3.9 GHz |
|---|---|
| Supply Voltage (VCC) | 2.7 V – 3.6 V |
| Package | 56‑pin TQFN, 7 mm × 7 mm |
| Noise Figure | 3.8 dB |
| Channel Bandwidth Options | 3.5 MHz – 10 MHz |
| Operating Temperature Range | -40 °C – +85 °C |
The device operates from 2.7 V to 3.6 V.
It supports RF frequencies from 3.3 GHz to 3.9 GHz.
It is packaged in a 56‑pin TQFN measuring 7 mm × 7 mm.
