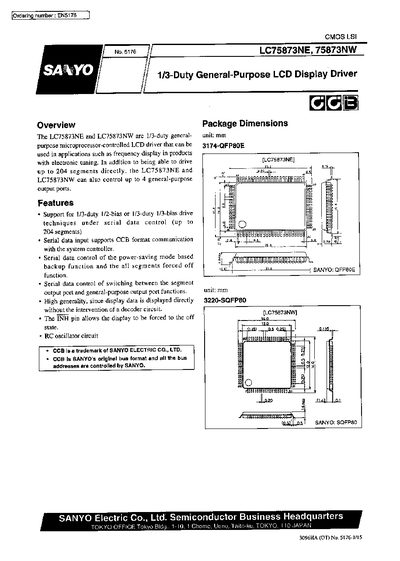

The LC75873NE and LC75873NW are 1/3‑duty general‑purpose LCD display drivers that can directly drive up to 204 segments and provide four general‑purpose output ports. They support both 1/2‑bias and 1/3‑bias drive techniques and use a serial CCB bus format for communication with a system controller.
The document includes pin assignments, functional descriptions, electrical characteristics, recommended external components, and sample application circuits for both 1/2‑bias and 1/3‑bias LCD panels.
| Maximum supply voltage (Vop) | 0.3 to +7.0 V |
|---|---|
| Operating temperature range | 40 to +85 °C |
| Storage temperature range | -55 to +125 °C |
| Allowable power dissipation (Pdmax) | 200 mW at 85 °C |
| Oscillator frequency range | 19 – 38 – 76 kHz |
| Recommended external resistor for oscillator | 180 kΩ |
The device can operate with a supply voltage from 0.3 V up to +7.0 V.
Both 1/3‑duty 1/2‑bias and 1/3‑duty 1/3‑bias drive techniques are supported.
