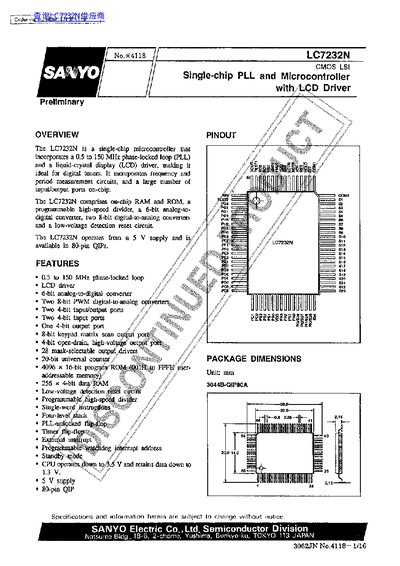

The LC7232N is a single‑chip microcontroller that integrates a 0.5‑to‑156 MHz phase‑locked loop, LCD driver, analog‑to‑digital and digital‑to‑analog converters, on‑chip RAM/ROM, and multiple I/O ports, making it suitable for digital tuner applications. It operates from a 5 V supply and is available in an 80‑pin QIP package.
The datasheet includes electrical characteristics, pin assignments, package dimensions, and a development system example using an LC72BV32 evaluation chip on a TB‑72EV32 target board.
| Supply voltage range | 3.5 to 5.5 V |
|---|---|
| PLL frequency range | 0.5 to 156 MHz |
| DAC resolution | 8‑bit |
| I/O ports | Two 4‑bit input ports, One 4‑bit output port |
| Package type | 80‑pin QIP |
| Power dissipation | 400 mW |
| Supply current | 2 mA |
It requires a supply voltage between 3.5 V and 5.5 V.
The integrated PLL covers frequencies from 0.5 MHz to 156 MHz.
