CV-BE series is to change height from 4.5mm of CV-BD which is a conventional low profile surface mount type capacitor, to be a lower profile 3.9mm which is the first time in the capacitor industry.
The CV‑BE series is a super‑low‑profile (3.9 mm height) surface‑mount capacitor line that replaces the older CV‑BD series (4.5 mm). These components are designed for applications requiring minimal height and fast solvent resistance.

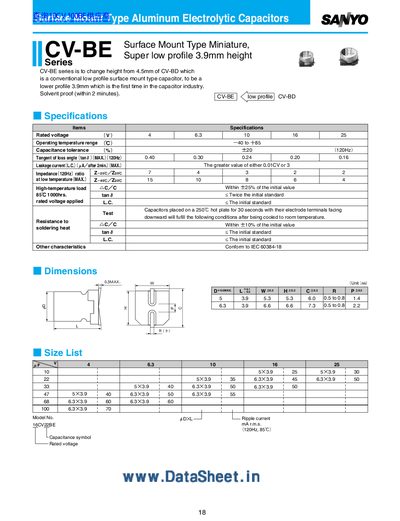

The datasheet provides electrical parameters such as rated voltage, temperature range, tolerance, loss angle, leakage current, and impedance, as well as mechanical dimensions and compliance with IEC 60384‑18.
| Rated voltage (WV) | 4 V, 6.3 V, 10 V, 16 V, 25 V |
|---|---|
| Operating temperature range | ‑40 °C to +85 °C |
| Capacitance tolerance | ±20 % (120 Hz) |
| Loss angle (tan δ) max | 0.40 | 0.30 | 0.24 | 0.20 | 0.16 (120 Hz) |
| Leakage current (L.C.) max | Greater of 0.01 CV or 3 µA after 2 min |
| Compliance | IEC 60384‑18 |
The CV‑BE series capacitors have a super low profile height of 3.9 mm.
They operate from –40 °C up to +85 °C.
The capacitors conform to IEC 60384‑18.
