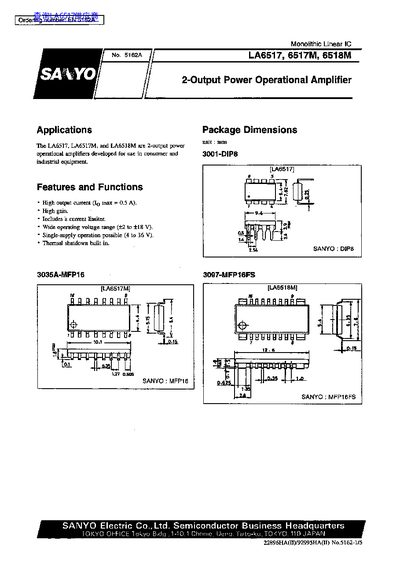

The LA6517, LA6517M, and LA6518M are 2‑output power operational amplifiers intended for consumer and industrial equipment. The datasheet lists key features such as high output current, built‑in current limiting, wide supply voltage range, and thermal shutdown.
Technical details include maximum ratings, recommended operating conditions, electrical characteristics, package dimensions, and a block diagram with pin assignments. Legal disclaimer notes the intended use and liability limitations.
| Maximum supply voltage | +18 V |
|---|---|
| Differential input voltage | 30 V |
| Common‑mode input voltage | 415 V |
| Recommended supply voltage | +2 to +16 V |
| No‑load current drain | 8‑20 mA |
| Limiting current (built‑in) | 0.5 A |
| Operating temperature range | -20 to +75 °C |
The device can deliver up to 0.5 A of output current.
It operates from a minimum of +2 V up to a maximum of +18 V, with a recommended range of +2 V to +16 V.
The operating temperature range is –20 °C to +75 °C.
