NC7SV158 TinyLogic ULP-A 2-Input Inverting Multiplexer is a low voltage and low power switch device. It is suitable for applications that require extreme high speed, high drive current and low power consumption. Its operating voltage range is 0.9V to 3.6V, the working speed is very fast, the drive current is large, and the power consumption is also very low.
The NC7SV158 is a single 2‑input inverting multiplexer from Fairchild’s Ultra Low Power‑A (ULP‑A) TinyLogic series. It operates from 0.9 V to 3.6 V and offers high‑speed performance with low power consumption, making it suitable for battery‑powered applications.

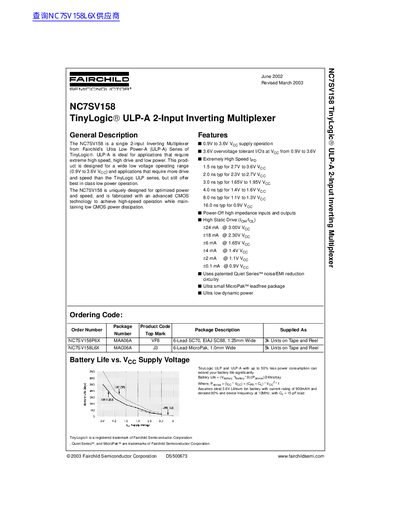

The document provides electrical characteristics, absolute maximum ratings, pin descriptions, package dimensions, and tape‑and‑reel handling information. It also includes a life‑support policy disclaimer and ordering codes for SC70 and MicroPak packages.
| Supply Voltage (Vcc) | 0.9 V to 3.6 V |
|---|---|
| Input Capacitance | 0 pF |
| Package Type | 6‑Lead SC70, 1.25 mm wide |
| Power‑off Leakage Current | 0 A |
The device operates from 0.9 V to 3.6 V supply voltage.
The part is offered in a 6‑lead SC70 package (MAA06A) and a 6‑lead MicroPak package (MACO6A).
