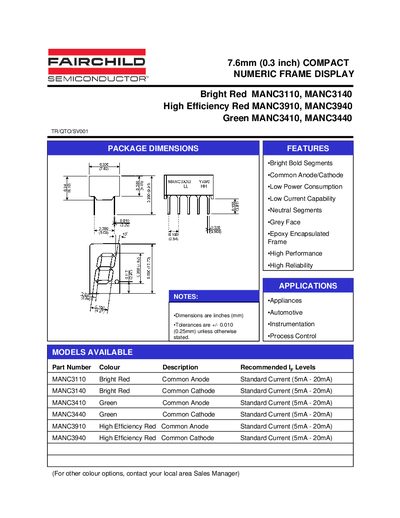

MANC3110-MANC3940 is a series of 7.6mm (0.3 inch) compact numeric frame displays with bright bold segments, common anode/cathode, low power consumption, low current capability, neutral segments, grey face, epoxy encapsulated frame, high performance and high reliability.
The Fairchild MANC3XX0 series provides 7.6 mm (0.3 in) compact numeric frame displays in bright red, high‑efficiency red, and green colors. The devices are offered in both common‑anode and common‑cathode configurations with standard current options of 5 mA‑20 mA.
The datasheet lists absolute maximum ratings, forward voltage characteristics, luminous intensity, and recommended operating conditions, along with pin orientation and segment identification for easy integration into display modules.
| Continuous Forward Current | 15 mA (MANC3110) – 25 mA (MANC3410, MANC3910) |
|---|---|
| Peak Forward Current | 60 mA (MANC3110) – 90 mA (MANC3410, MANC3910) |
| Power Dissipation | 40 mW (MANC3110) – 70 mW (MANC3410, MANC3910) |
| Reverse Voltage per Die | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Luminous Intensity (minimum, 5 mA) | 860 ucd (MANC3110), 980 ucd (MANC3410) |
The peak forward current is 60 mA per segment.
They are rated for operation from –40 °C to +85 °C.
Both common‑anode and common‑cathode versions are available for each model.
