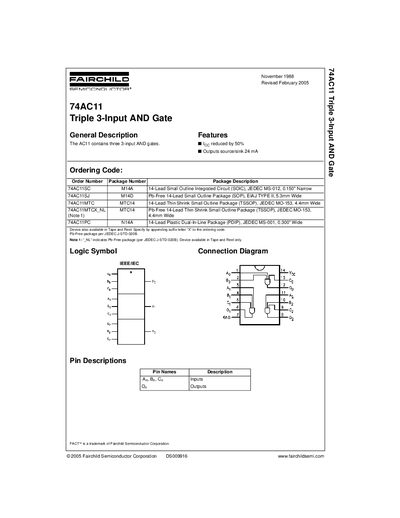

The 74AC11 is a triple 3-input AND gate with the following features: ICC reduced by 50%, output source/sink 24mA.
The 74AC11 is a triple 3‑input AND gate that offers high‑speed logic functions. It features reduced input capacitance and can source or sink up to 24 mA per output.
The document lists electrical characteristics, absolute maximum ratings, propagation delays, and detailed mechanical dimensions for several package types (SOIC, SOP, TSSOP, PDIP). It also includes ordering codes and a life‑support usage disclaimer.
| Output source/sink current | 24 mA |
|---|---|
| Minimum HIGH input level | 3.0 V |
Each output can source or sink up to 24 mA.
No, Fairchild does not authorize its use in life‑support applications.
