FKN08PN60S is a TRIAC (Silicon Bidirectional Thyristor) produced by Fairchild Semiconductor Corporation

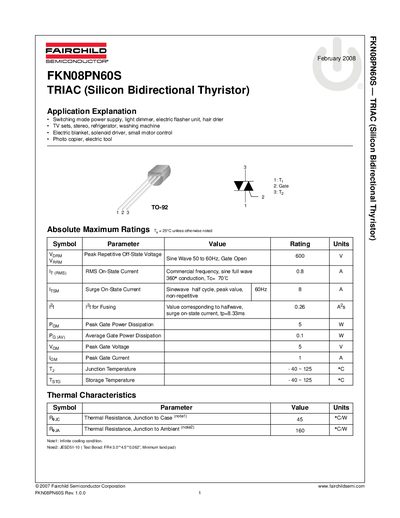

This datasheet describes the FKNO8PN60S silicon bidirectional thyristor (triac). It lists typical applications such as switching mode power supplies, light dimmers, motor control, and various consumer electronics. The document includes absolute maximum ratings, thermal characteristics, and detailed electrical parameters.
Key sections cover the device marking and ordering information, quadrant definitions for gate operation, typical performance curves (on‑state voltage, gate trigger current, power dissipation), and mechanical package dimensions for the TO‑92 case. Legal notices and trademark information conclude the document.
| Peak Gate Power Dissipation (P_G) | 5 W |
|---|---|
| Junction Temperature Range (Tj) | -40 °C to 125 °C |
The junction temperature may operate from –40 °C up to 125 °C.
