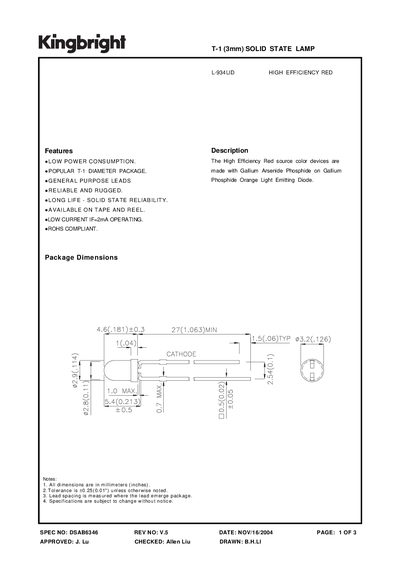

This document is the specification of L-934LID. It introduces the features and characteristics of this product. This product is a high efficiency red LED, which has low power consumption, low current and long life.
The L-934LID is a high‑efficiency red solid‑state lamp in a T‑1 (3 mm) package. It offers low power consumption, long life, and is RoHS compliant, suitable for general‑purpose leads and available on tape and reel.
The datasheet lists detailed electrical and optical characteristics, absolute maximum ratings, and derating curves, helping designers select the correct operating current, voltage, and thermal conditions for reliable performance.
| Peak Wavelength | 627 nm |
|---|---|
| Forward Voltage (IF=20 mA) | 2.0 V |
| Reverse Current (VR=5 V) | 10 µA |
| Power Dissipation | 105 mW |
| Operating Temperature | -40 °C to +85 °C |
| Capacitance | 15 pF |
| Peak Forward Current | 160 mA |
| DC Forward Current | 30 mA |
The forward voltage is 2.0 V when the current is 20 mA.
The device can tolerate a reverse voltage of up to 5 V.
It operates from –40 °C up to +85 °C.
