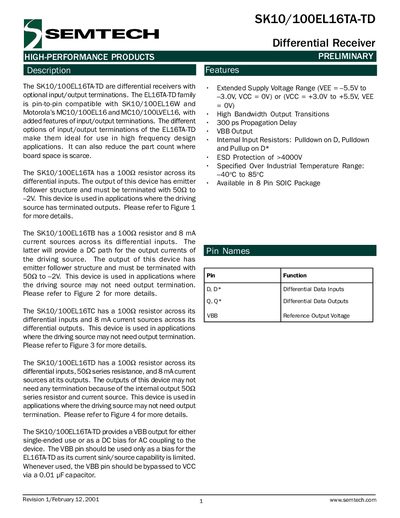

The SK10/100EL16TA-TD are differential receivers with optional input/output terminations. The EL16TA-TD family is pin-to-pin compatible with SK10/100EL16W and Motorola’s MC10/100EL16 and MC10/100LVEL16, with added features of input/output terminations. The different options of input/output terminations of the EL16TA-TD make them ideal for use in high frequency design applications. It can also reduce the part count where board space is scarce. The SK10/100EL16TA has a 100Ω resistor across its differential inputs. The output of this device has emitter follower structure and must be terminated with 50Ω to –2V. This device is used in applications where the driving source has terminated outputs.
The SK10/100EL16TA‑TD family are high‑performance differential receivers with optional input and output terminations, designed for high‑frequency designs where board space is limited. The devices are pin‑to‑pin compatible with earlier SK series and Motorola parts, offering added termination options.
The datasheet provides detailed specifications such as supply voltage range, propagation delay, ESD protection, temperature limits, and package dimensions, along with pin configuration, circuit description, and marking information for ordering.
| Supply Voltage Range | VCC‑VEE 3.0 V to 5.5 V |
|---|---|
| Propagation Delay | 300 ps |
| ESD Protection | > 4000 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Package Type | 8‑Pin SOIC |
| Output Rise Time (20‑80%) | 115 ps to 190 ps (typical) |
The device includes a 100 Ω resistor across its differential inputs.
The devices operate with a supply voltage (VCC‑VEE) between 3.0 V and 5.5 V.
The parts are specified for -40 °C to 85 °C operation.
