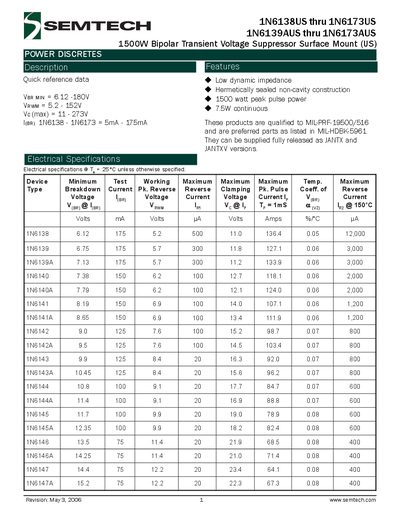

This document describes the surface mount characteristics and specifications of Semtech's 1500W Bipolar Transient Voltage Suppressor 1N6138US to 1N6173US and 1N6139AUS to 1N6173AUS series.
The Semtech 1N6138US‑1N6173US series are 1500 W surface‑mount bipolar transient voltage suppressors designed for high‑energy pulse protection. The document provides quick reference data, detailed electrical specifications, and ordering information for the full range of part numbers.
Key tables list breakdown voltage, reverse current, clamping voltage, and maximum pulse ratings, followed by mechanical dimensions, packaging options, and Semtech contact details for procurement.
| Peak Pulse Power | 1500 W |
|---|---|
| Continuous Reverse Voltage | 5.2‑152 V @ 7.5 W |
| Maximum Clamping Voltage | 11‑273 V |
The devices are rated for a 1500 W peak pulse power.
They are available in trays or tape and reel packaging.
Semtech Corporation, Power Discretes Products Division, 200 Flynn Road, Camarillo, CA 93012, Phone (805) 498‑2111, Fax (805) 498‑3804.
