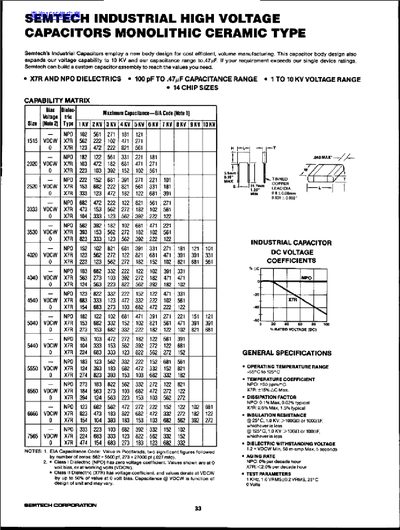

Semtech’s industrial high‑voltage capacitors use a monolithic ceramic body design that enables voltage ratings up to 10 kV and a capacitance range of 100 pF to 47 µF. Fourteen standard chip sizes are available, and a variety of dielectric materials (X7R, NPO, etc.) are offered to meet different performance needs.
The datasheet provides detailed capability matrices, general specifications, chip and encapsulated dimensions, and ordering instructions. It also lists key parameters such as insulation resistance, dissipation factor, and dielectric withstanding voltage, allowing designers to select the appropriate part for high‑voltage applications.
| Voltage range | 1 kV to 10 kV |
|---|---|
| Capacitance range | 100 pF to 47 µF |
| Number of chip sizes | 14 |
| Dielectric types | X7R, NPO, etc. |
They are rated for up to 10 kV.
The capacitors cover a range from 100 pF to 47 µF.
Fourteen standard chip sizes are offered.
