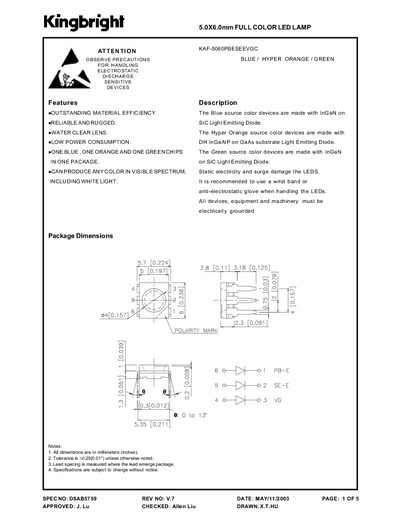

This datasheet describes the Kingbright KAF-5060PBESEEVGC 5.0 × 6.0 mm full‑color LED package, which combines blue, hyper‑orange, and green chips in a single package. It lists key features such as high material efficiency, low power consumption, water‑clear lens, and the ability to produce any visible color including white light.
The document includes package dimensions, a selection guide with typical forward current and luminous intensity values, electrical and optical characteristics at 25 °C, absolute maximum ratings, and graphs showing relative intensity versus wavelength, forward voltage/current curves, and derating curves for temperature. Handling precautions for electrostatic discharge are also provided.
| Package size | 5.0 × 6.0 mm |
|---|---|
| Peak wavelength (Blue) | 465 nm |
| Peak wavelength (Hyper Orange) | 630 nm |
| Peak wavelength (Green) | 520 nm |
| Forward voltage (Hyper Orange, IF=20 mA) | 2.0 V |
| Reverse current (all colors) | 10 µA |
| Total power dissipation | 350 mW |
| DC forward current (Blue) | 30 mA |
| Operating temperature range | -40 °C to +85 °C |
Use a wrist band or anti‑electrostatic glove when handling the LEDs and ensure all equipment and machinery are electrically grounded.
The device is rated for a maximum reverse voltage of 5 V.
