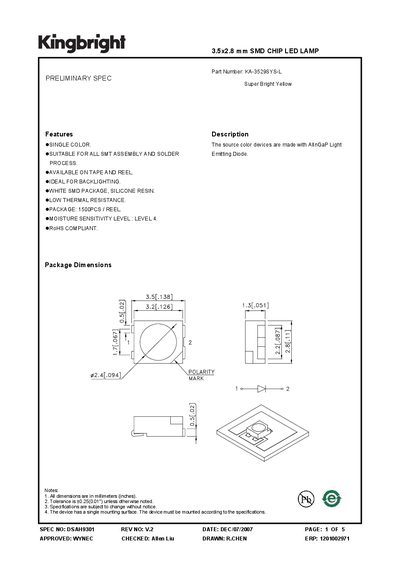

This document describes a 3.5x2.8mm surface-mount chip LED lamp with super bright yellow color. It is suitable for all SMT assembly and solder processes, and ideal for backlighting. The LED has a white SMD package with low thermal resistance.
The Kingbright KA-3529SYS-L is a 3.5 × 2.8 mm SMD chip LED in a silicone resin package, designed for backlighting and SMT assembly. The datasheet provides detailed electrical and optical characteristics, absolute maximum ratings, and package information such as a 1500 pcs/reel tape and Level 4 moisture sensitivity.
Handling precautions emphasize careful side‑surface handling, avoiding contact with the silicone lens, and proper nozzle sizing for pick‑and‑place. A reflow soldering profile for lead‑free processes is also included, recommending a peak temperature of 245 °C (±5 °C) and limiting the number of reflow cycles to two.
| Peak Wavelength | 590 nm |
|---|---|
| Forward Voltage (150 mA) | 2.8‑3.2 V |
| Reverse Current (5 V) | 10 µA |
| Capacitance (1 MHz) | 20 pF |
| Power Dissipation | 480 mW |
| DC Forward Current | 150 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Package Quantity | 1500 pcs/reel |
| Moisture Sensitivity Level | Level 4 |
| RoHS Compliance | Yes |
The recommended reflow peak temperature is 245 °C with a tolerance of ±5 °C.
Handle the component by its side surfaces with forceps, avoid touching the silicone lens, and use a pliable nozzle tip to prevent scratching.
The forward voltage is specified as 2.8 V to 3.2 V at 150 mA.
The device can dissipate up to 480 mW.
