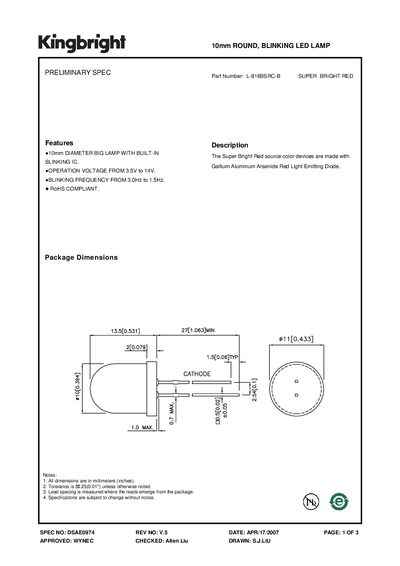

This document is about a 10mm diameter LED lamp with built-in blinking IC. It operates at a voltage range of 3.5V to 14V and has a blinking frequency of 3.0Hz to 1.5Hz. The product is RoHS compliant.
The L-816BSRC-B is a Super Bright Red 10 mm round LED lamp that blinks using an integrated IC. It is designed for applications requiring a compact, high‑intensity red flashing light.
The datasheet provides detailed electrical and optical parameters, package dimensions, and maximum ratings, allowing designers to integrate the component safely and reliably into their circuits.
| Operating Voltage | 3.5 V to 14 V |
|---|---|
| Blinking Frequency | 1.5 Hz to 3 Hz |
| Forward Current | 8 mA to 22 mA |
| Supply Current (3.5 V) | 8 mA |
| Supply Current (14 V) | 44 mA |
| Power Dissipation | 310 mW |
| Forward Voltage (max) | 14 V |
| Operating Temperature | -40 °C to +70 °C |
| Package Dimensions (typical) | 13.5 mm × 27 mm |
The LED operates from 3.5 V up to 14 V.
It blinks between 1.5 Hz and 3 Hz.
The forward current can range from 8 mA to 22 mA.
It can operate from –40 °C to +70 °C.
