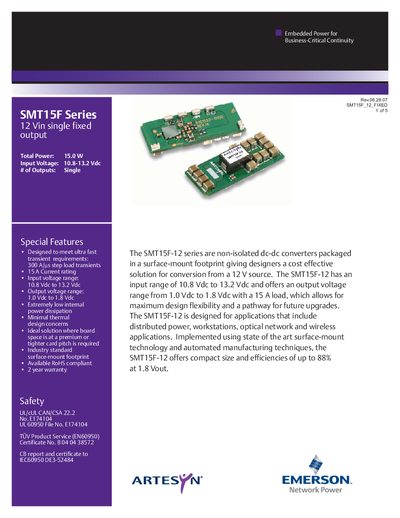

The SMT15F-12 is a non-isolated DC-DC converter in the SMT series, packaged in a surface-mount footprint, providing designers with an economical solution for converting from a 12V source. The SMT15F-12 has an input range of 10.8Vdc to 13.2Vdc and offers an output voltage range from 1.0Vdc to 1.8Vdc with a 15A load, which allows for maximum design flexibility and a pathway for future upgrades. The SMT15F-12 is designed for applications that include distributed power, workstations, optical network and wireless applications. Implemented using state-of-the-art surface-mount technology and automated manufacturing techniques, the SMT15F-12 offers compact size and efficiencies of up to 88% at 1.8Vout.
The SMT15F‑12 series provides a compact, surface‑mount DC‑DC conversion solution for 12 V sources. It offers a single fixed output voltage selectable between 1.0 V and 1.8 V, a 15 A current rating, and up to 88 % efficiency, making it suitable for distributed power, workstations, optical networking and wireless applications.
Typical specifications include an input range of 10.8‑13.2 Vdc, total power of 15 W, a small 7 g weight, and operation from –40 °C to +85 °C. The device features an active‑high remote ON/OFF pin, optional remote‑sense, and a standard 6‑pin surface‑mount package with detailed mechanical drawings and pinout information.
| Input voltage range | 10.8 Vdc to 13.2 Vdc |
|---|---|
| Output voltage range | 1.0 Vdc to 1.8 Vdc |
| Maximum output current | 15 A |
| Total power | 15.0 W |
| Weight | 7 g (0.25 oz) |
| Operating temperature range | -40 °C to +85 °C |
| Package dimensions (L×W×H) | 33.02 x 13.46 x 7.57 mm |
The converter operates from 10.8 Vdc to 13.2 Vdc.
The output can be set between 1.0 Vdc and 1.8 Vdc.
It can supply up to 15 A of load current.
When the pin is pulled high the converter is ON; pulled low it is OFF. Leaving the pin open leaves the converter ON.
