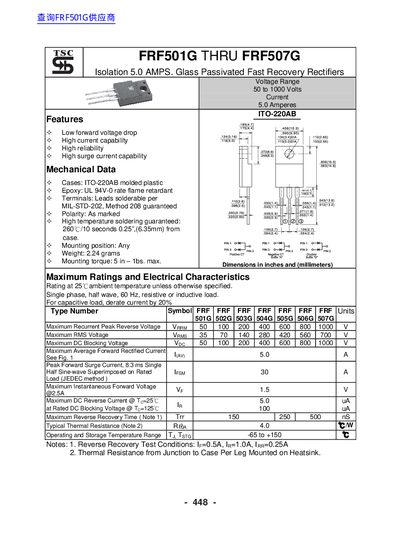

FRF501G THRU FRF507G is a 5.0 AMPS isolation glass passivated fast recovery rectifiers, with low forward voltage drop, high current capability, high reliability and high surge current capability.
The FRF501G‑FRF507G series are glass‑passivated fast recovery rectifiers with isolation up to 5.0 A. They cover a voltage range of 50 V to 1000 V and are supplied in ITO‑220AB molded‑plastic cases with solderable leads.
Maximum ratings include a peak forward surge current of 30 A (8.3 ms half‑sine), reverse recovery times of 150‑500 ns, and a thermal resistance of 4.0 °C/W. The devices operate from –65 °C to +150 °C and meet UL 94V‑0 flame‑retardant standards.
| Voltage Range | 50 V to 1000 V |
|---|---|
| Maximum Forward Current | 5.0 A |
| Case Type | ITO‑220AB molded plastic |
| Mounting Torque | 5 in‑lb max. |
| Reverse Recovery Time | 150‑250‑500 ns |
| Thermal Resistance (J‑C) | 4.0 °C/W |
| Operating Temperature Range | -65 °C to +150 °C |
The maximum average forward rectified current is 5.0 A.
Reverse recovery time is specified as 150 ns to 500 ns.
