The CM150TL-24NF is an IGBT module produced by Mitsubishi Electric with a power of 150A and a voltage of 1200V. It is suitable for use in AC drive inverters and servo controls.

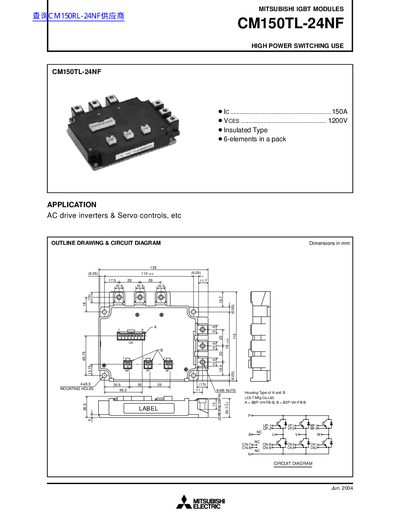

The CM150TL-24NF is an insulated‑type IGBT module with six elements in a pack, designed for high‑power switching uses such as AC drive inverters and servo controls. It features a compact outline drawing and circuit diagram for easy integration.
Key specifications include a collector‑emitter voltage rating of 1200 V, continuous collector current of 150 A (300 A pulsed), and a maximum dissipation of 890 W. Thermal data show a junction temperature range of –40 °C to +150 °C and typical weight of 750 g, making it suitable for demanding power electronics applications.
| Continuous collector current (Ic) | 150 A |
|---|---|
| Pulse collector current | 300 A |
| Junction temperature range (Tj) | -40 °C ~ +150 °C |
| Typical weight | 750 g |
| Input capacitance (Cies) | 23 nF |
The typical weight is 750 g.
