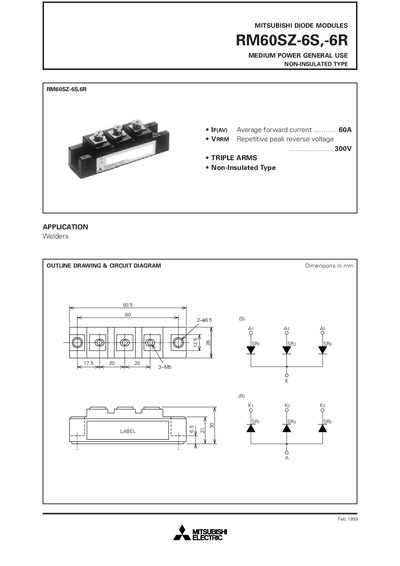

This document describes the absolute maximum ratings, electrical characteristics, and operating conditions of RM60SZ-6S,6R.
The RM60SZ‑6S and RM60SZ‑6R are medium‑power general‑use diode modules offered in both non‑insulated and insulated versions. They are intended for applications such as welders and feature a compact package with typical weight of 130 g.
Key specifications include a repetitive peak reverse voltage of 300 V, RMS forward current of 95 A, surge forward current of 1200 A, and a junction temperature range of –40 °C to 150 °C. The datasheet provides detailed electrical characteristics, thermal impedance curves, mounting torque values and dimensional drawings.
| Repetitive peak reverse voltage (VRRM) | 300 V |
|---|---|
| Nominal repetitive peak reverse voltage (VRSM) | 400 V |
| Reverse DC voltage (VR) | 240 V |
| RMS forward current (IF RMS) | 95 A |
| Maximum operating frequency | 1000 Hz |
| Junction temperature range | -40 °C to 150 °C |
| Storage temperature range | -40 °C to 125 °C |
| Typical weight | 130 g |
The maximum repetitive reverse voltage (VRRM) is 300 V.
The junction temperature range is –40 °C to 150 °C, and the storage temperature range is –40 °C to 125 °C.
The typical weight of the module is about 130 g.
