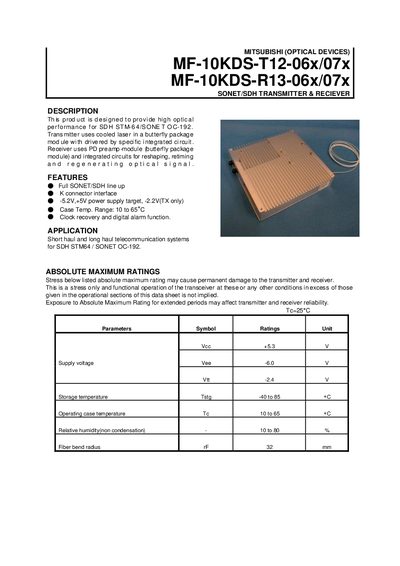

This is an English datasheet for MITSUBISHI (OPTICAL DEVICES) MF-10KDS-T12-06x/07x MF-10KDS-R13-06x/07x SONET/SDH TRANSMITTER & RECIEVER. This product is designed for SDH STM-64/SONET OC-192, using a cooled laser and integrated circuits for high optical performance.
The MF-10KDS‑T12 and MF-10KDS‑R13 modules are designed for high‑performance optical transmission in SDH STM‑64/SONET OC‑192 networks. The transmitter uses a cooled laser in a butterfly package, while the receiver incorporates a PD pre‑amp module with integrated circuits for signal regeneration.
Key specifications include a supply voltage of +5 V (typical 4.75‑5.25 V), operating case temperature from 10 °C to 65 °C, optical output power of +3 dBm to –2 dBm, and a wavelength range of 1530‑1565 nm. The devices also provide alarm functions such as laser degradation, power‑out‑of‑range, laser over‑temperature, and loss‑of‑signal detection.
| Supply voltage (Vec) | +5.3 V |
|---|---|
| Supply voltage range (Vec) | 4.75 V – 5.25 V |
| Operating case temperature (Tc) | 10 °C – 65 °C |
| Storage temperature (Tstg) | -40 °C – 85 °C |
| Optical output power (Pout) | +3 dBm – –2 dBm |
| Wavelength range | 1530 nm – 1565 nm |
| Receiver sensitivity | -14 dBm – -13 dBm |
| Fiber bend radius | 32 mm |
The transmitter operates with a typical supply voltage of +5 V, with a permissible range of 4.75 V to 5.25 V.
The device is rated for an operating case temperature from 10 °C to 65 °C.
Both transmitter and receiver operate over a wavelength range of 1530 nm to 1565 nm.
