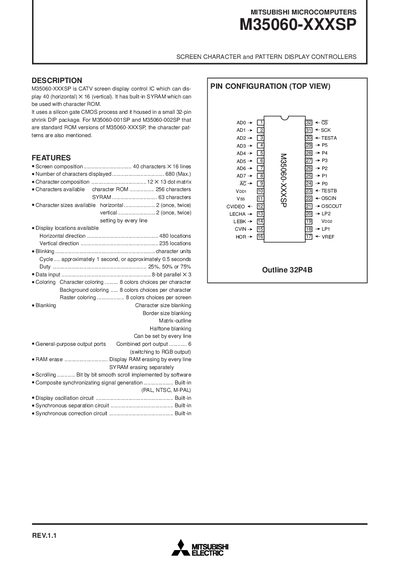

M35060-XXXSP is a CATV screen display control IC which can display 40 (horizontal) x 16 (vertical) characters. It has built-in SYRAM which can be used with character ROM. It uses a silicon gate CMOS process and it housed in a small 32-pin shrink DIP package.
The M35060-XXXSP is a CATV screen display control IC that can display 40 (horizontal) × 16 (vertical) characters. It uses a silicon‑gate CMOS process and is housed in a small 32‑pin shrink DIP package. The device includes built‑in SYRAM for character ROM and supports 8‑color foreground and background per character.
Key features include an 8‑bit parallel data interface, general‑purpose output ports, composite video output, and a flexible memory map with separate display RAM, control registers, and SYRAM. Detailed pin descriptions, register settings, and timing information are provided for system integration.
