The TDB7910 and TDA7910 are medium‑power, single‑bipolar operational amplifiers designed for applications that require load currents of several hundred milliamperes, such as servo amplifiers, driver interfaces, precision power comparators and motor‑speed control. They operate from a single or dual supply and include short‑circuit and thermal overload protection.

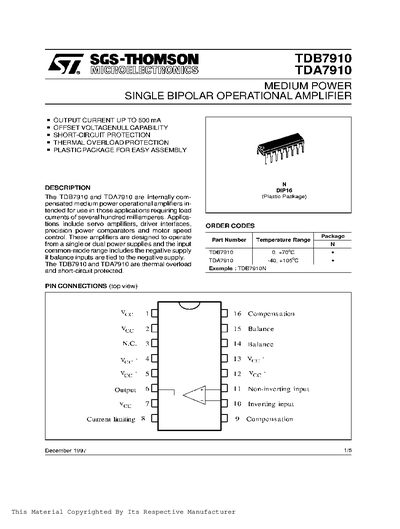

The document provides absolute maximum ratings, electrical characteristics, pin‑out, schematic diagram, and mechanical dimensions for the DIP‑16 plastic package version of the devices.
| Supply Voltage (VCC) | +18 V |
|---|---|
| Differential Input Voltage (VIG) | +30 V |
| Input Voltage (VI) | +15 V |
| Thermal Resistance | 60 °C/W |
The devices are rated for a supply voltage up to +18 V.
