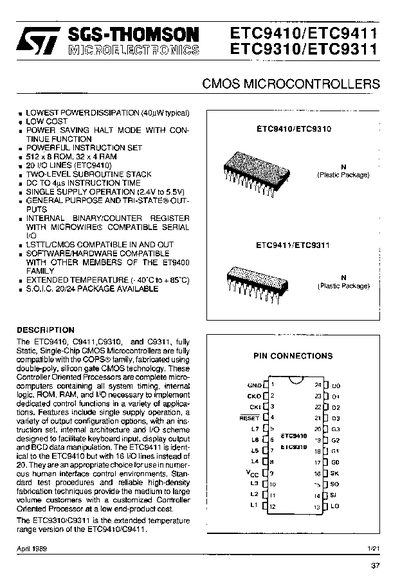

The document describes the SGS‑Thomson ETC9410/ETC9411 family of static single‑chip CMOS microcontrollers. It outlines features such as low power dissipation, single‑supply operation (2.4 V‑5.5 V), 20 I/O lines for the ETC9410, and compatibility with the COPS® family. The functional description covers program memory, RAM organization, and instruction set architecture.
Electrical specifications are given in detail, including absolute maximum ratings, DC and AC characteristics, supply current ranges, input/output voltage levels, and timing parameters. Pin‑out diagrams, option‑list programming, and physical dimensions of the 24‑pin and 20‑pin plastic packages are also provided.
| Operating Voltage | 2.4 V – 5.5 V |
|---|---|
| Total Source Current (max) | 25 mA |
| Total Sink Current (max) | 25 mA |
| I/O Lines (ETC9410) | 20 |
| Package Type (ETC9410) | 24‑pin plastic package |
The ETC9410 operates from 2.4 V to 5.5 V.
The ETC9410 has 20 bidirectional I/O lines.
The maximum allowable source current is 25 mA.
The device is supplied in a 24‑pin plastic package.
