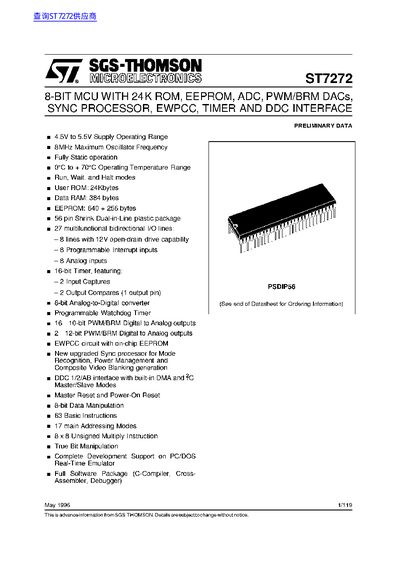

The ST7272 is an HCMOS Microcontroller Unit (MCU) from the ST7 family based on an industry-standard 8-bit core. It operates with a supply voltage range of 4.5V to 5.5V and supports oscillator frequencies up to 8MHz, while also allowing fully static operation down to DC.
The device integrates extensive on-chip peripherals including a digital Watchdog Timer, a 16-bit multipurpose timer with input captures and output compares, an upgraded Sync Processor for video blanking generation, and a DDC interface. It features 27 multifunctional bidirectional I/O lines, some with 12V open-drain drive capability.
| Supply Voltage Range | 4.5V to 5.5V |
|---|---|
| Maximum Oscillator Frequency | 8MHz |
| Operating Temperature Range | 0°C to +70°C |
| User ROM Size | 24Kbytes |
| Data RAM Size | 384 bytes |
| EEPROM Capacity | 640 + 256 bytes |
| I/O Lines Count | 27 multifunctional bidirectional I/O lines |
| Analog Inputs | 8 Analog inputs |
The device operates with a supply voltage range of 4.5V to 5.5V.
The ST7272 supports a maximum oscillator frequency of 8MHz.
Yes, thanks to its fully static design, operation is possible down to DC.
