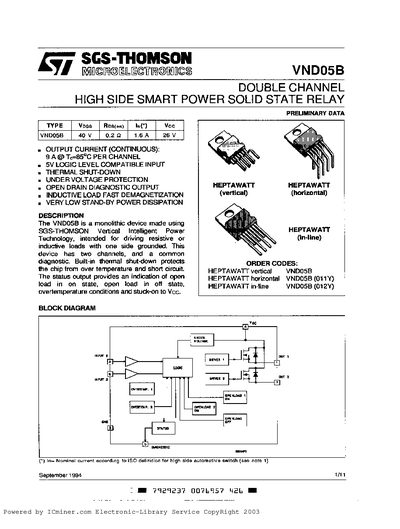

The VNDOSB is a monolithic double‑channel high‑side smart power solid‑state relay designed for driving resistive or inductive loads with one side grounded. Each channel can deliver up to 9 A continuous current at 85 °C and includes built‑in thermal shutdown, under‑voltage protection and an open‑load diagnostic output.
The device operates from a 6‑13 V supply (up to 26 V max), consumes 59 W at 25 °C, and features low standby power. It provides status signals for over‑temperature, open‑load and short‑circuit conditions, and supports fast demagnetization of inductive loads.
| Continuous Output Current per channel | 9 A |
|---|---|
| Input Current | 10 mA |
| Power Dissipation at 25 °C | 59 W |
| Junction Operating Temperature | -40 °C to 150 °C |
| Thermal Resistance Junction‑Case | 2.1 °C/W |
| Under‑Voltage Shut‑Down Level | 3.5 V |
| Input Low Level Voltage | 1.5 V |
| Input High Level Voltage | 3.5 V |
| Thermal Shut‑Down Temperature | 140 °C (trip), 125 °C (reset) |
Each channel can deliver 9 A continuous current at a junction temperature of 85 °C.
Yes, it shuts down at 140 °C and automatically restarts when the temperature falls to 125 °C.
