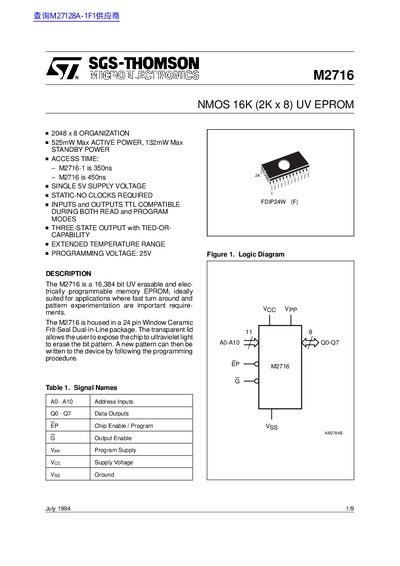

The M2716 is a 16,384 bit UV erasable and electrically programmable memory EPROM, ideally suited for applications where fast turn around and pattern experimentation are important requirements. The M2716 is housed in a 24 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
The M2716 is a 16,384‑bit UV‑erasable EPROM offered in a 24‑pin ceramic Frit‑seal DIP package with a transparent window for UV erasure. It is designed for applications requiring fast turnaround and flexible programming, supporting single‑byte, sequential and random‑address programming.
Key features include three operating modes (Read, Deselect, Standby), a single‑supply 5 V operation, TTL‑compatible inputs/outputs, three‑state outputs with tied‑OR capability, and an extended temperature range. Detailed electrical characteristics, timing diagrams and AC measurement conditions are provided for design integration.
| Memory Organization | 2048 x 8 |
|---|---|
| Access Time (M2716‑1) | 350 ns |
| Access Time (M2716) | 450 ns |
| Supply Voltage | 5 V |
| Programming Voltage | 25 V |
| Maximum Active Power | 525 mW |
| Maximum Standby Power | 132 mW |
| Operating Temperature (Grade 1) | 0 °C to 70 °C |
| Storage Temperature | -65 °C to 125 °C |
| Input Leakage Current | ≤10 pA |
| Output Leakage Current | ≤10 pA |
| Standby Supply Current | 25 mA |
The M2716 is programmed with a programming voltage of 25 V.
The device is housed in a 24‑pin FDIP (ceramic frit‑seal DIP) package.
Erasure is performed by exposing the transparent window to high‑intensity ultraviolet light.
